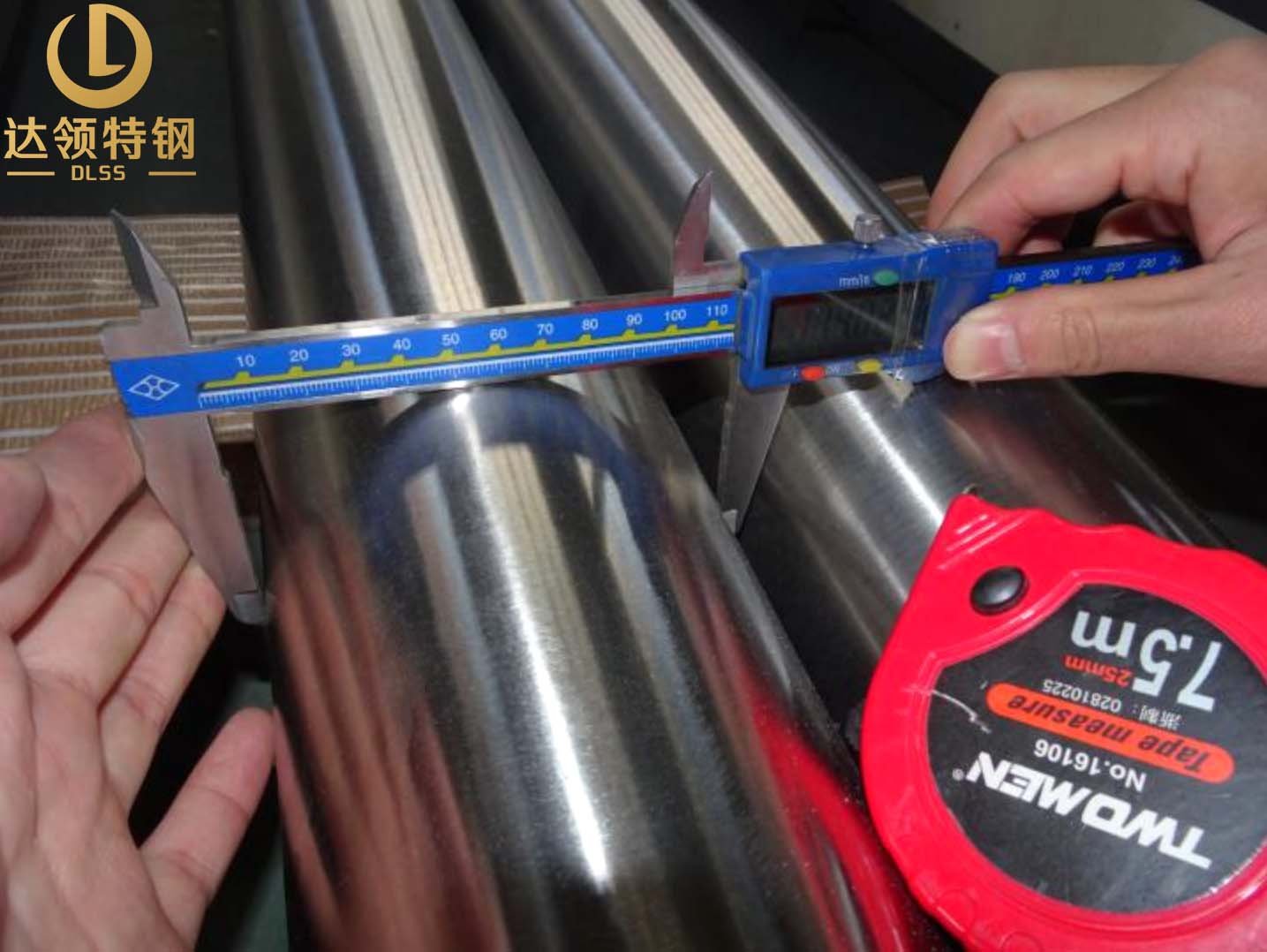

JIS NCF800HT-Incoloy 800HT Seamless Tube 76.1*4.5

JIS NCF800HT-Incoloy 800HT Seamless Tube 76.1*4.5*4520MM, Bright Surface, used for Heat-exchanger

Additional information

Brand

DALING Special Steel (DLSS)

Certificate

ABS, DNV.GL, LR, BV, NK, PED, AD2000, ISO, CCS, CRN, API

MOQ

1PC

Delivery

20 Days

Testing

HT, ET, UT

Product Details:

DALING SPECIAL STEEL, manufacturing and exporting Piping materials for more than 30 years, including Austenitic Stainless Steel, Super Duplex Steel, Nickel Alloy Steel (Hastelloy/Monel/Inconel/Incoloy), Copper and Copper Alloy Steel. DALING has the most advanced producing and testing equipments, our factory have been approved by: ABS, DNV.GL, BV, LR, NK, PED, AD2000, CCS, TS, ISO9001, ISO 14001, ISO18001, API, CRN No etc

So far, more than 3200 companies from 56 countries trust us, such as Italy, UK, Germany, USA, Canada, Chile, Colombia, Saudi Arabia, Russia, Korea, Singapore, Australia, New Zealand, Poland, France etc, the count is increasing.

DALING is not just producer, we are more like problem solvers and focus on creating value for customers.



Material Grade:

Alloy Alloy 200(N02200), Alloy 201(N02201), Alloy 20(N08020), Alloy 28(N08028), Alloy 31(N08031), Alloy 36 (K93600), Alloy 904(N08904)
Hastelloy Hastelloy C22(N06022), Hastelloy C276(N10276), Hastelloy C4(N06045), Hastelloy S(N06635), Hastelloy C2000(N06200), Hastelloy G-30(N06030), Hastelloy G-35(N06035), Hastelloy X(N06002), Hastelloy N(N10003), Hastelloy B(N10001), Hastelloy B-2(N10665), Hastelloy B-3(N10675)
Monel Monel 400(N04400), Monel 401 (N04401), Monel 404 (N04404), Monel K500(N05500),
Inconel Inconel 600(N06600), Inconel 601(N06601), Inconel 617(N06617), Inconel 625(N06625), Inconel 690(N06690), Inconel 718(N07718), Inconel X-750(N07750)
Incoloy Incoloy 800(N08800), Incoloy 800H(N08810), Incoloy 800HT(N08811), Incoloy 825(N08825), Incoloy 925(N08925), Incoloy 926(N09926)
Others 253MA(S30815), 254SMO(S31254), S32304, 17-4PH(S17400), 17-7PH(S17700), 15-7PH(S15700)



Incoloy 800HT(N08811) Material, ensures higher stress rupture and creep properties compared to N08810 as a result of restricting the carbon content further in the range of 0.06 to 0.10% (N08810 is 0.05 to 0.10%), and the aluminum plus titanium content at 0.85 to 1.20% (N08810 is 0.30 to 1.20%).



Specifications for Incoloy Alloy 800 Series Pipes/Tubes:

Seamless Pipe / Tubing Welded Pipe / Tubing
Incoloy 800 ASTM B 407 / 163 ASTM B 514 / 515
ASME SB 407 / 163 ASME SB 514 / 515
Incoloy 800H ASTM B 407 / 163 ASTM B 514 / 515
ASME SB 407 / 163 ASME SB 514 / 515
Incoloy 800HT ASTM B 407 / 163 ASTM B 514 / 515
ASME B 407 / 163 ASME SB 514 / 515
Incoloy 825 ASTM B 423 / 163 ASTM B 705 / 704
ASME SB 423 / 163 ASME SB 705 / 704



Chemical Composition % for Incoloy Alloy 800 Series Pipes/Tubes:

Alloy 825 Ni Fe Cr Mb Cu Ti C Mn S Si Al
38.0-46.0 22.0 min 19.5-23.5 2.5-3.5 1.5-3.0 0.6-1.2 0.05 max 1.0 max 0.03 max 0.5 max 0.2 max
Alloy 800 Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 0.75 max 0.15-0.60 0.15-0.60 0.1 max 1.5 max 0.015 max 1.0 max
Alloy 800H Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 0.75 max 0.15-0.60 0.15-0.60 0.05-0.10 max 1.5 max 0.015 max 1.0 max
Alloy 800HT Ni Fe Cr Cu Ti Al C Mn S Si
30.0-35.0 39.5 min 19.0-23.0 0.75 max 0.25-0.60 0.85-1.20 0.06-0.10 max 1.5 max 0.015 max 1.0 max



Mechanical Properties for Incoloy Alloy 800 Series Pipes/Tubes:

INCOLOY 800 INCOLOY 800H INCOLOY 800HT INCOLOY 825
Density 7.94 g/cm3 7.94 g/cm3 7.94 g/cm3 8.1 g/cm³
Melting Range,℃ 1350-1400 ℃ 1350-1400 ℃ 1350-1400 ℃ 1370-1400
Elongation % 30-35 30-35 30-35 30
Tensile strength – Mpa 500 500 500 550
Yield strength – Mpa 205 200 200 220
Brinell hardness (HB) ≤200



NICKEL ALLOYS TRADENAME UNS NO. WERKSTOFF NO. DENSITY (8.8 G/CM3)
Alloy 800 Incoloy 800 N08800 1.4876 8.0
Alloy 800H Incoloy 800H N08810 1.4876 8.0
Alloy 800HT Incoloy 800HT N08811 1.4876 8.0
Alloy 825 Incoloy 825 N08825 2.4858 8.18



Incoloy 800HT is known for many of the same outstanding characteristics as Incoloy 800H including:
•Excellent resistance to oxidation, sulfidation, and carburization
•Higher creep and rupture properties for high temperature situations above 1100°F (600°C)
•Resistant to high temperature corrosion and prolonged exposure
•Readily machined by standard methods
•Resistance to aqueous corrosion at moderate temperatures



Incoloy Alloy 800 Series Pipes/Tubes have been widely used for high-temperature applications including:
• Hydrocarbon cracking
• Industrial furnace and boiler components and equipment
• Equipment for Heat-Treating
• Pressure vessels and heat exchangers
• Chemical and Petrochemical processing
